Highlights
- AMD’s AM5 platform is shaping up as new chipsets are revealed including the high-end X870 and the mid-range B850.
- Both claim to support AMD’s latest Ryzen 7000 and next-gen 8000 series processors, but they target different needs and budgets.
- Let’s dissect the differences to better understand which chipset you should be looking for in your next build.

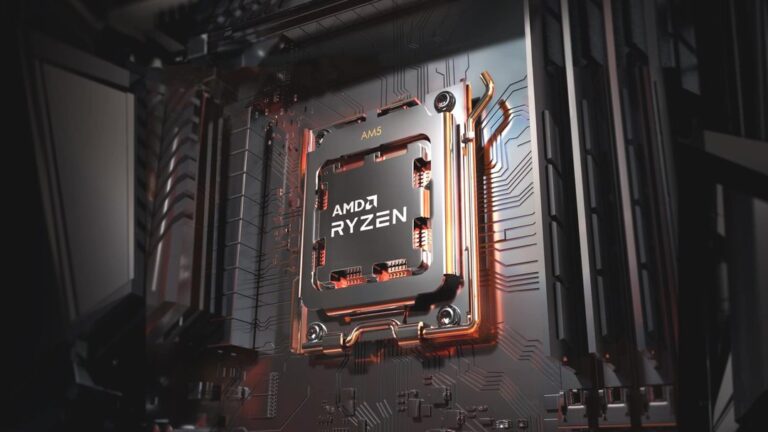

AMD’s ongoing expansion of the AM5 socket and new Ryzen 7000 and 8000 series CPUs means even the motherboard chipsets (like the X870 and B850) are going to be big news during 2025.
These chipsets follow in the footsteps of the X670 and B650 and bring better connectivity, better support for next-gen GPUs and SSDs, and improved power delivery.
But which is the best for your build — the X870 flagship or the B850 mid-range? We cover everything from PCIe lanes and overclocking support to future-proofing, pricing, and how you’ll actually use the damned thing in the real world in this exhaustive guide.
What’s new in AMD X870 and B850 chipsets?

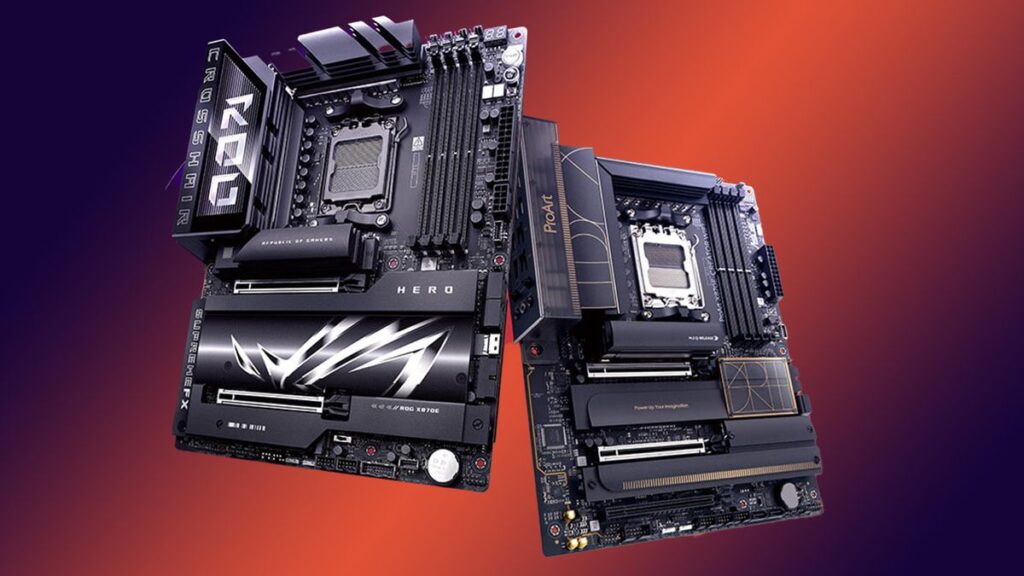

X870 Chipset
The X870 stands for the upcoming AMD X870 chipset for the AM5 socket. It is compatible with the newest Ryzen processors: the 7000 and 8000 series and beyond.
It is targeted at enthusiasts and gamers who demand the highest performance, full PCIe Gen5 support, and maximum expandability.

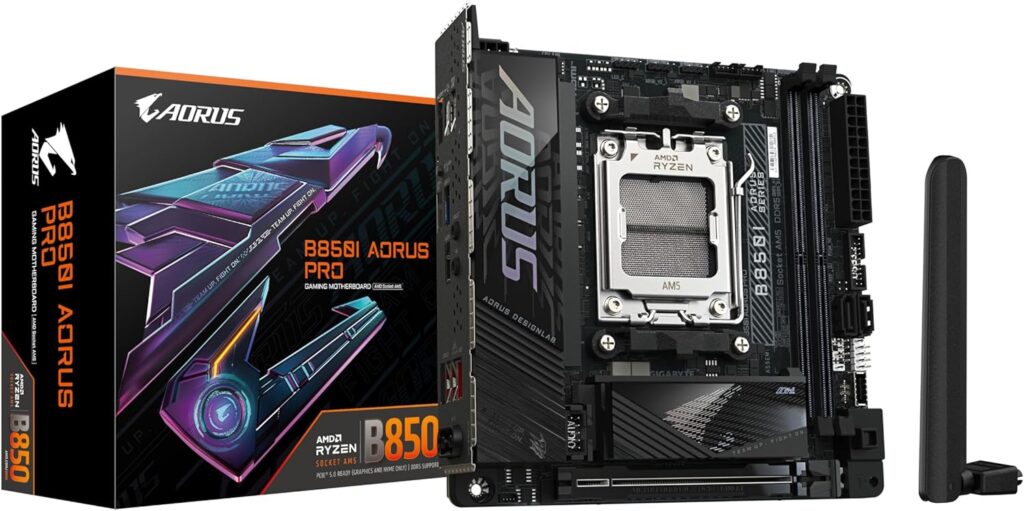

B850 Chipset
The B850 is the chipset in the middle that has the most users. You still get the majority of the X870 features but at a lower cost.
It’s perfect for gamers and builders who don’t need extreme overclocking or multiple expansion cards.
CPU Compatibility and Platform Support
Both have support for Ryzen 7000 and 8000 CPUs, so you’ll get Zen 4 and maybe Zen 5 support. Both are future-proof as well, because AM5 is AMD’s long-term platform (its support is promised until at least 2026).
| Feature | AMD X870 | AMD B850 |
|---|---|---|
| Socket | AM5 | AM5 |
| Ryzen CPU Support | Ryzen 7000, 8000, future AM5 CPUs | Ryzen 7000, 8000, future AM5 CPUs |
| BIOS Update Needed? | No (most support out-of-the-box) | No (same as X870) |
Chipset and PCIe Lane Comparison
The primary difference is the number of PCIe lanes and how they’re segmented.
| Feature | X870 | B850 |
|---|---|---|
| CPU PCIe Lanes | 24 (same for both) | 24 |
| Chipset PCIe Lanes | 12+ | 8-10 |
| PCIe Gen5 for GPU | Yes | Yes |
| PCIe Gen5 for NVMe SSD | Yes | Yes (sometimes limited to one slot) |
Motherboards tend to offer higher numbers of Gen5 lanes, so a pair of PCIe Gen5 SSDs or GPUs can both run at full speed with no trade-offs.
B850 could single-slot Gen5 SSDs or divvy up lanes between the GPU and SSDs.
USB & Connectivity Options
They both get USB4 support (depending on your board maker); however, the X870 will have more high-speed USB ports and better all-around I/Os.
| USB Feature | X870 | B850 |
|---|---|---|
| USB 4.0 Ports | Up to 2 | 0–1 |
| USB 3.2 Gen2x2 (20Gbps) | 2–4 | 1–2 |
| SATA Ports | Up to 6 | Usually 4 |
| Ethernet Support | 2.5G/10G | Mostly 2.5G |
| Wi-Fi | Wi-Fi 7 or 6E | Wi-Fi 6/6E (Wi-Fi 7 rare) |
X870 boards are for high-bandwidth workflows, for content development, or for streaming people who depend on fast external storage and WAN access.
Overclocking Support
| Feature | X870 | B850 |
|---|---|---|
| CPU Overclocking | Yes | Yes |
| Memory Overclocking | Yes (better VRMs) | Yes |
| Voltage Control | Full control | Limited on some boards |
| VRM Quality | High-end, better thermal design | Mid-range, basic heatsinks |
Both chipsets can still overclock the CPU and RAM, but the X870 boards tend to have beefier VRMs, better heatsinks, and more advanced BIOS control, making them the go-to choice for overclockers.
Form Factors and Expansion
| Feature | X870 | B850 |
|---|---|---|
| Form Factors | Mostly ATX, E-ATX | ATX, mATX, mini-ITX |
| Multi-GPU Support (SLI/CF) | Yes (but rare use today) | No or limited |
| M.2 Slots | 3–5 | 2–3 |
| Expansion Slots | More x16/x4 slots | Fewer slots overall |
- X870s are also bigger and have more durability, which is great for high-end gaming machines or workstations.
- B850 motherboards tend to be available in compact micro-ATX or mini-ITX sizes, making them ideal for anyone building a small form factor build.
Power Delivery and Thermal Performance
- X870 boards are typically equipped with 14–20-phase VRMs, bigger heatsinks, and active cooling to support continuous workloads and overclocking.
- Most B850 boards have 8–12 phases, which is adequate for stock operation and even light overclocking.
If you’re going to be running a Ryzen 9 7950X or doing a lot of rendering or gaming, the X870 makes more heat sense.
Price Comparison
If you are crafting a budget PC, being the one based on the Ryzen 5 7600, B850 is plentiful. For a Ryzen 9 7950X3D or 8900X, however, spending a bit more on the X870 isn’t a bad choice. So, if you want to know the pricing details, visit the official website.
Use Case Scenarios
| Use Case | Recommended Chipset |
|---|---|
| Gaming (1080p/1440p) | B850 |
| High-End Gaming (4K, VR, X3D CPUs) | X870 |
| Content Creation (Video Editing, CAD) | X870 |
| Home or Office PC | B850 |
| Streaming & Recording Simultaneously | X870 |
| Budget Build (under ₹1L / $800) | B850 |
| Future-Proof PC for 5+ Years | X870 |
Benchmark & Performance (Board-Level)
Chipsets don’t directly impact gaming FPS, but X870 motherboards generally support faster RAM speeds, more overclocking headroom, and better stability, which may contribute to your overall system responsiveness as well as multitasking.
For example:
- X870 featuring the Ryzen 9 7950X3D + DDR5-6000 CL30 = higher average FPS when playing CPU-bound games.
- B850 with the same CPU may throttle under load because of weaker VRMs unless decently cooled.
Future-Proofing
- The X870 also supports PCIe Gen5 GPUs and SSDs with additional lanes, so you have room for better upgrades as next-gen components become available.
- B850 has Gen5 GPUs and one Gen5 SSD, which is fine for now but might be a bit limiting 2–3 years from now.
Pros & Cons Summary
| Chipset | Pros | Cons |
|---|---|---|
| X870 | a) Full support of PCIe Gen5 (several devices) b) Improved VRM and cooling performance c) Perfect fit for high-end and overclocked CPUs d) A little more USB4, M.2 slots, and faster networking. | a) Expensive b) Mostly large form factors (ATX or bigger) c) Too much for budget, mid-range builds. |
| B850 | a) Budget-friendly b) Sufficient gaming and productivity features c) Complement PCIe Gen5 GPU and a Gen5 SSD d) Available in compact sizes | a) Fewer USB and M.2 slots b) Lower grade VRM and less of an overclocking headroom c) Less than ideal for future multi-device Gen5 builds. |
Conclusion: X870 vs. B850 – Which One Should You Choose?
If you’re in the market for a future-proof, high-end workstation PC featuring Ryzen 9 CPUs, multiple Gen5 SSDs, and complete overclocking capabilities, the X870 is a slam dunk. It’s designed for gamers, creators, and power users.
But if you’re building a mid-range PC for gaming, streaming, or general daily productivity, especially on a budget, the B850 is a great value, delivering about 80% of the features at 60% of the cost.
So, that’s all we have for you about the x870 vs. b850. We hope that this guide has helped you. For more info, comment below.
